Method For Making Carbon Black Ton Bag With Breathable Air

Technical features:

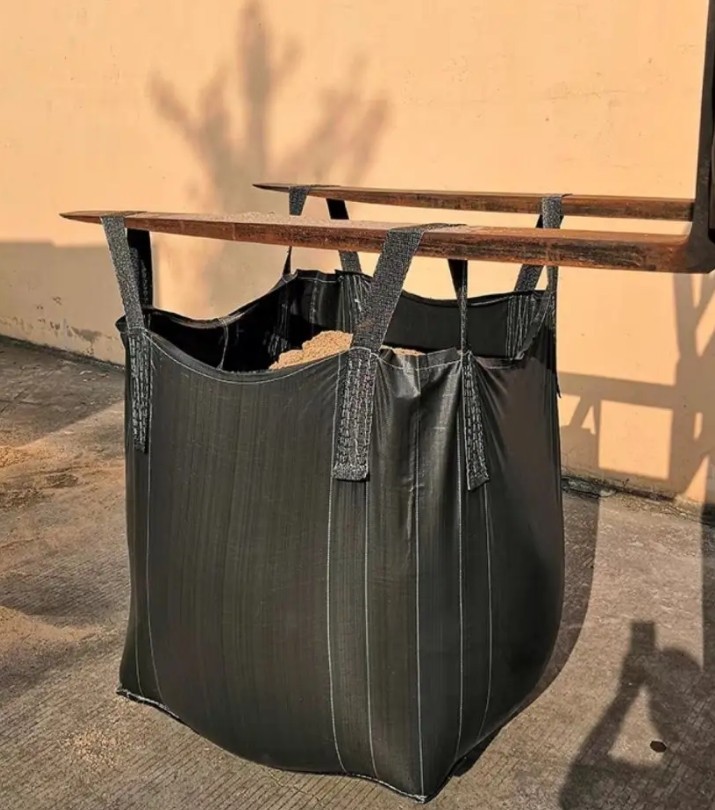

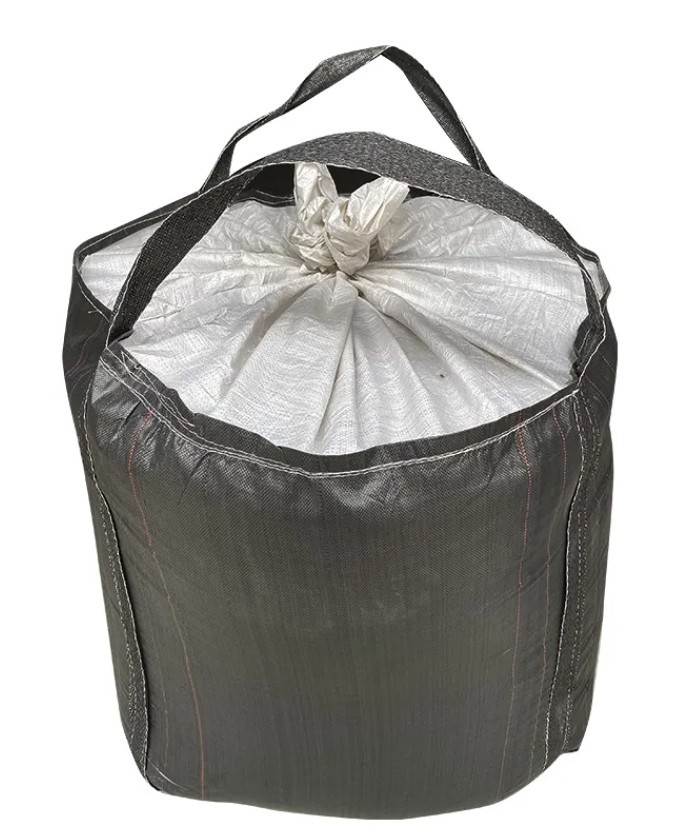

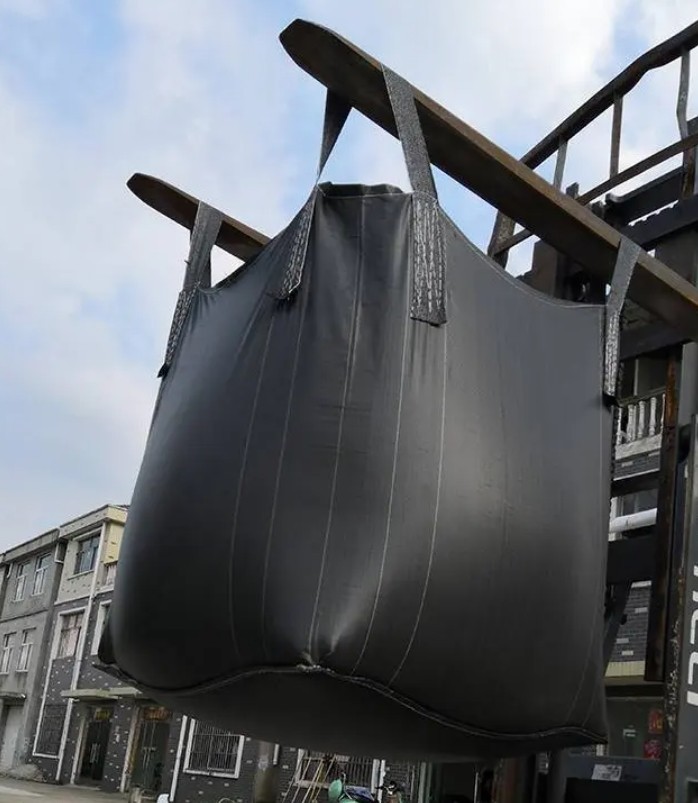

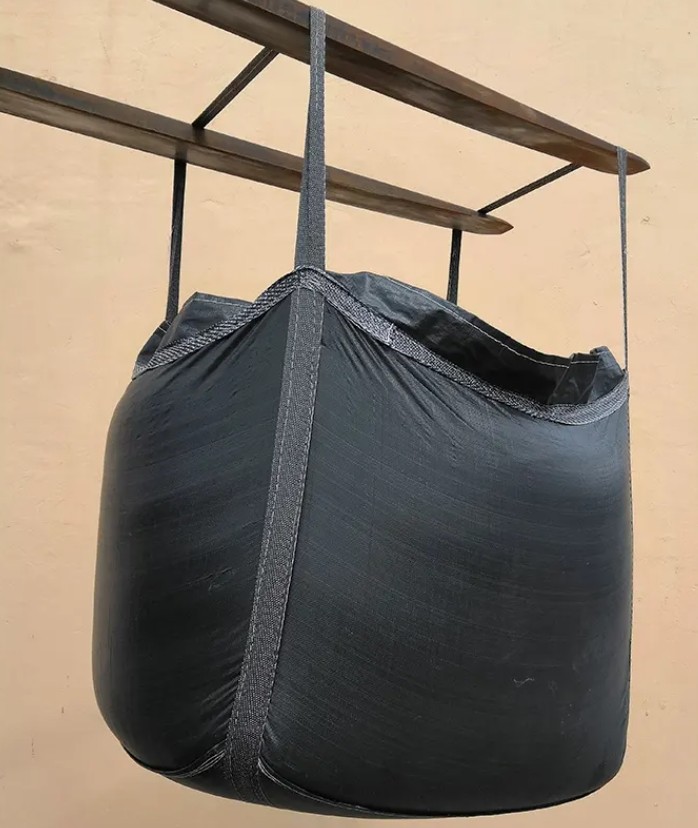

1. A breathable carbon black ton bag comprises a bag body (1); It is characterized that the bag body (1) is a square structure composed of double fabric, the outer layer of the bag body (1) is a plastic woven fabric material, and the inner layer of the bag body (1) is a non-woven fabric material; The top surface and bottom surface of the bag body (1) are respectively provided with a feeding port and a discharging port. The feeding port is connected with the feeding cylinder (2), and the discharging port is connected with the discharging cylinder (3); The top surface of the bag body (1) is connected around the hanging ring (4); The bag body (1) is provided with a first reinforcing rib (5) connecting the bag body (1) in a diagonal position, and the second reinforcing rib (6) is arranged horizontally around the outside of the bag body (1); The outer corner joints of the bag body (1) are provided with leak-proof stickers (7).

2. According to claim 1, the breathable carbon black ton bag is characterized in that the feed cylinder (2), discharge cylinder (3), lifting ring (4), second reinforcement (6), and anti-leakage sticker (7) are the outer layer of the sew-connected bag body (1).

3. The breathable carbon black tonnage bag described in claim 1 is characterized in that the first stiffener (5) is sewn to connect the inner layer of the bag body (1).

4. The breathable carbon black ton bag described in claim 1 is characterized in that the feeding cylinder (2), discharge cylinder (3), lifting ring (4) and first reinforcement (5) are made of plastic braided fabric.

5. According to the claim 1, the breathable carbon black ton bag is characterized in that the second reinforcement (6) and the leak-proof sticker (7) are non-woven materials.
